You've got the idea
We give you the product
Electrical, Electronic, Mechanical and Software solutions
First Line of business: Consulting R&D, PCBs Design
Design
Ones the product specification settled, you will get an interactive design between the three departments (Electronic, mechanical, software) in order to minimize the costs
Manufacture
Transfer to production. You receive all technical documents needed for manufacturing your product anywhere in the world.
Shortage components BOM management and mitigation solutions
Support
You are assisted with any update, improvement and certification of the product

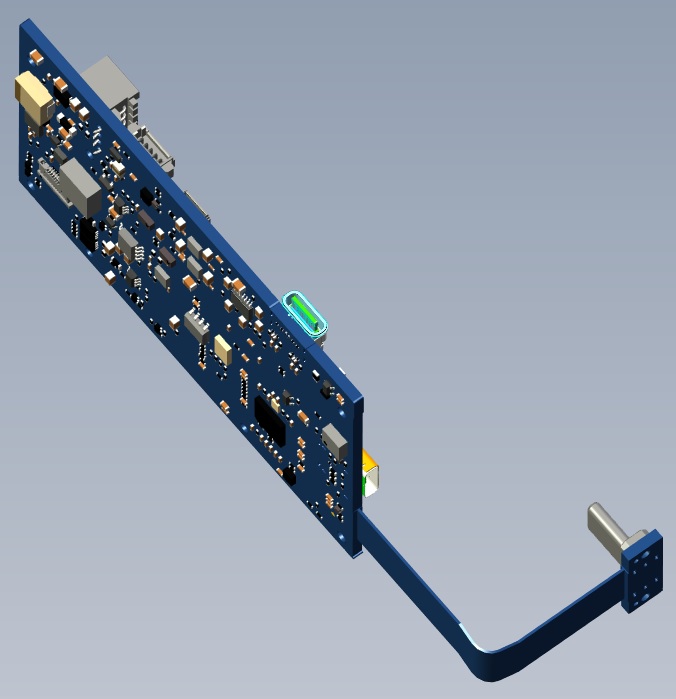

PCB design
Up to 20 layers, Impedance control, High speed, Rigid, Flex-Rigid, Flex
Second Line of business: Production
Heat Pump Controls

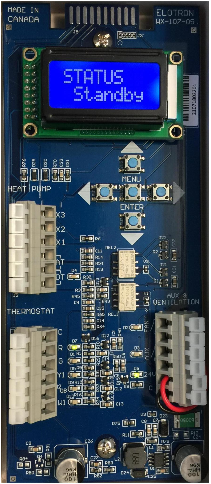

HPC101 Inverter heat pump control
The HPC101 heat pump controller is an installation interface designed to work with a heat pump inverter unit.
· It is a wiring center that dramatically reduces the wiring time of a typical heat pump system.
· Not a single low voltage wiring junction is needed or required one wire = one direct press on wiring terminal.
· It is fully compatible to typical Add-On or All- Electric ducted heat pump systems for both new and retrofit jobs.
· It simplifies start-up, commissioning and diagnostics. It supplies a clear and complete diagnostic of the system with its multiple real time LED’s and displayed statuses.
· It is compatible with any 2H/1C heat pump thermostat on the market. Simply select the one which is suitable for your client.
· With the supplied CTP-CH1 interface card, it communicates to the outdoor heat pump unit all the heating and cooling demand signals.
· Using the integrated outdoor temperature reading from the heat pump, it controls the important following features:
-The “low balance kit”, to automatically shut down the heating operation of the heat pump in low outdoor ambient conditions.
The “high balance kit”, to automatically shut down the auxiliary/emergency heat operation of the central furnace in high outdoor ambient conditions.
-For Add-On systems, it has a DT dual tarification input for the power meter, if your utility has such a local program, to simplify wiring and integration.
-Can be configured in C or F.
-It has a built-in filter timer and alarm for filter replacement reminders.

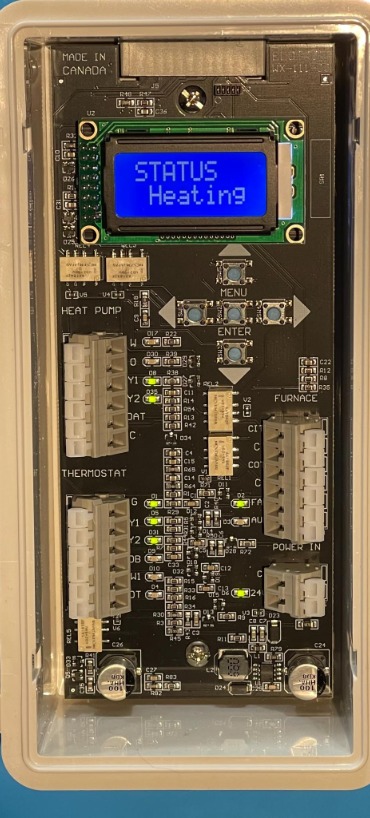

HPC102 On-Off & Inverter Heat pump control
The HPC102 heat pump control is an installation interface designed to work with a any ON-OFF heat pump
· It is a wiring center that dramatically reduces the wiring time of a typical heat pump system.
· Not a single low voltage wiring junction is needed or required one wire = one direct press on wiring terminal.
· It is fully compatible to typical Add-On or All- Electric ducted heat pump systems for both new and retrofit jobs.
· It simplifies start-up, commissioning and diagnostics. It supplies a clear and complete diagnostic of the system with its multiple real time LED’s and displayed statuses.
· It is compatible with any 2H/1C heat pump thermostat on the market. Simply select the one which is suitable for your client.
· Real time capacity display (BTU meter)
· Real time diferential temperature display
· Using the integrated outdoor temperature reading, it controls the important following features:
-The “low balance kit”, to automatically shut down the heating operation of the heat pump in low outdoor ambient conditions.
The “high balance kit”, to automatically shut down the auxiliary/emergency heat operation of the central furnace in high outdoor ambient conditions.
-For Add-On systems, it has a DT dual tarification input for the power meter, if your utility has such a local program, to simplify wiring and integration.
-Can be configured in C or F.
-Compressor protection
Water Monitoring System

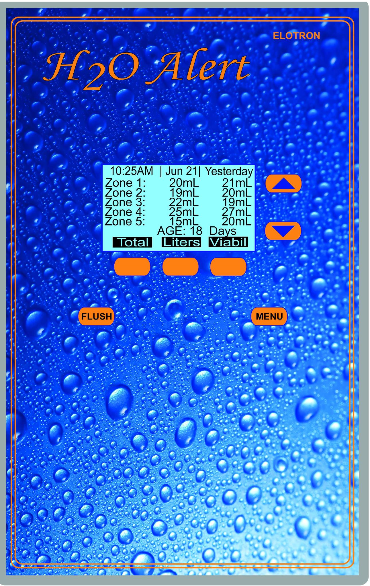

H2O Alert
H2O Alert Controller was designed for informing about the water consumption of one or many counters in the same building (maximum 6). Many assets of this controller recommend it like an important tool to process data and comparisons of the water consumption.
1. Water Consumption since the Beginning of Cycle.
H2O Alert gives you both, a daily basis consumption along with a total consumption, since the growing cycle started, with 400 days history.
2. Comparing display “Today-Yesterday”
For allowing you to compare the water consumption, H2O Alert gives you the today water consumption along with those of yesterday, at the same hour. You may react more quickly if any abnormal consumption occurs.
3. G or Oz / Head Display.
For today/yesterday water’s consumption you may choose to display in Gallons but for a higher precision, you may want to choose to display in Oz/head water consumption.
H2O Alert has the option to enter the daily mortality and the controller will deduct them from the total rest of birds.
4. Mode 'Flush'
When you want to FLUSH your water lines, with H2O Alert's help, you simply press “Flush” button and the device will not calculate the water's consumption for a length of time to be established and adjusted by the user.
5. Light Sensor
The H2O Alert option for detect the light gives you a better precision of hazardous water wastes, as well as the lack of the water according with day or night schedules.
6. Day and Night Alarms
H2O Alert can adjust your day and night alarm thresholds for improving your reaction's time. It has a second ALARM threshold when passing from night to day
7. The Display Is Always ON.
You may check onto the day's info without opening the access door or touching whatever button.
8. “Electric valve” option
H2O Alert has the option to close the water flow with the help of an electric valve, for each occurring alarm or hazardous water waste.
9. Alarm Memory.
The zone and alarm type stay displayed on the screen until an employee becomes aware of the event.
10. “Plug-In” Connectors.
The internal connectors of the controller are the “Plug-In” type, which allows easy install and maintenance for H2O Alert.
